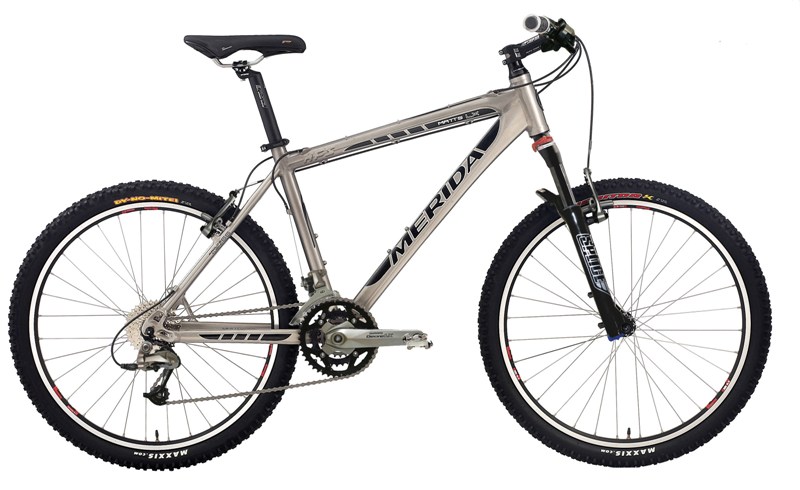

Merida Matts LX
 Size |
S/M/L/XL (16/18/20/22) |
| Speed | 27 speeds |
| Frame | Matts HFS Alloy |
| Colour | Titanium brush |
| Fork | Manitou Splice Elite, 100 mm, LO |
| Derailleur (front) | Shimano Deore LX |
| Derailleur (rear) | Shimano Deore LX Reverse |
| Shifter | Shimano Deore LX Dual Control |
| Brake lever | Shimano LX Dual Control |
| Brake | Shimano Deore LX |
| Chainwheel | Shimano Deore LX Hollowtech II, 44/32/22 |
| Bbset | Shimano Deore LX Hollowtech II |
| Hub | Shimano Deore LX |
| Spokes | silver |
| Rim | DT Swiss XR 4.1 |
| Freewheel | CS-M580-9 |
| Tire (front) | Maxxis Ignitor, 2.10, Kevlar |
| Tire (rear) | Maxxis Dynomite, 2.10, Kevlar |
| Headset | ZS Race os neck |
| Bar | FSA Riser os |
| Stem | FSA XC Lite os |
| Saddle | Fizik Nisene CP3 |
| Seat post | FSA SL Lite off-set |
| Pedal | Shimano M-520 |
